The Theben thePrema P360 KNX has 3 channel light and 2 channel presence with a Square detection range of 360° (up to 100 m2) for safe and easy planning.
Function description
- Passive infra-red presence detector KNX for flush-mounted ceiling installation

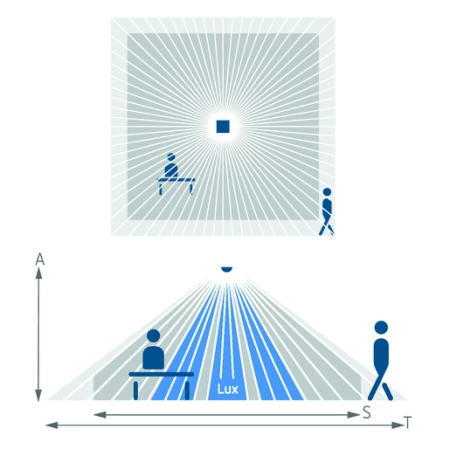

- Square detection area 360°, 9 x 9 m, (81 m2) at mounting height 3 m
- 3 channels light and 2 channels presence
- 2 channel light C1, C2 with 2 light measurements and additional lighting channel C3 without brightness factor
- 2 presence channels can be set individually
- Adaptable 3 channel light measurement
- Mixed light measurement suitable for LEDs, fluorescent lamps (FL/PL/ESL) and halogen/incandescent lamps
- Can be used as fully or semi-automatic, switchable
- Switch or constant light control mode with stand-by function
- Dimmable lighting in switch mode with stand-by function
- Brightness switching value or set point value can be set in lux using parameters, on the device itself or via remote control
- Teaching in of the brightness switching value or the set point value
- Room correction factor setting for brightness measurement calibration
- Light time delay can be set using parameters, on the device itself or via remote control
- Switch on delay and time delay for presence can be set
- Detection sensitivity can be set
- Self-learning time delay
- Reduced time delay in the event of a shorter stay in the room (short presence)
- Scenario functions
- Extremely easy setting of energy saving characteristics with the new "eco plus" function
- Test mode for checking function and detection range
- Parallel switching of several detectors in Master/Slave or Master/Master possible
- User remote control and management-remote control (optional)
- Room monitoring
- * According to warranty terms and conditions, see www.theben.de/en/guarantee
Technical data
Installation height |
2 – 10 m |
Minimum height |
> 1,7 m |
Measuring range brightness
|
5 – 3000 lx |
Detection angle |
360° |
Type of connection |
Spring terminals WAGO 243 |
Installation type |
Ceiling installation |
Light switch-off delay |
30 s – 60 min |
Lamps |
Energy saving lamps, fluorescent lamps, Incandescent/halogen lamps, LEDs |
Light measurement |
Mixed light measurement |
Presence switch-off delay |
10 s - 120 min |
Switch-on delay presence |
10 s – 30 min / inactive |
Ambient temperature |
0°C ... 50°C |
Detection range |
81 m² (9,0 x 9,0 m) |
Colour |
White Or Grey
|
Type of protection |
IP 40 (when fitted) |
