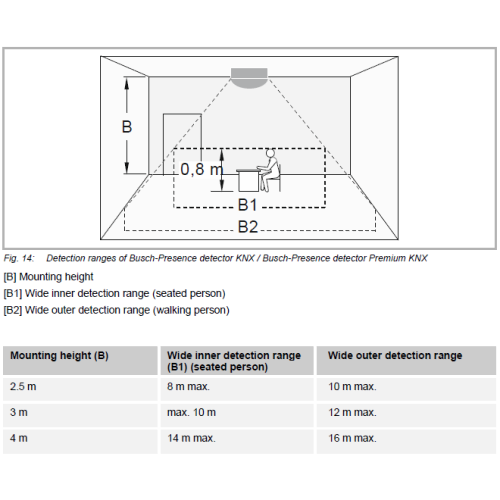

Detection range (for mounting height 2.5 m, 3 m and 4 m): circular.
Seated persons Ø: 8 m, 10 m and 14 m.
Walking persons Ø: 10 m, 12 m and 16 m.
Visible height 23 mm. With 2 channels. Targeted for connection and disconnection of lights
bands depending on the room brightness. Regulation in response to the movement possible.
Using the device as presence and/or movement detectors. Detectors application with 2 power
off stages. Detectors application with integrated monitoring function. Constant light switch
with up to two independent channels. Constant light switch with max. 2 outputs for brightnessdependent
switching of two light bands in the area. With integrated KNX bus coupler.
Connections: KNX-line: Bus connection terminal. Brightness limit value: 1 Lux – 1000 Lux.
Mounting height: 2 m – 4 m.
Protection class (Device): IP 20. Temperature range (Device): – 5 °C to 45 °C.

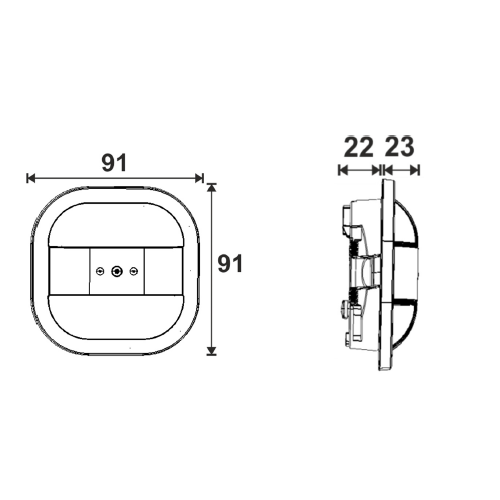

Dimensions: (L x W x D): 91 mm x 91 mm x 45 mm. Mounting depth: 22 mm.
