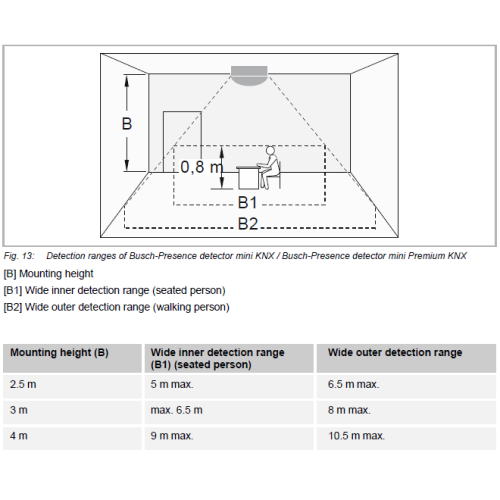

Detection range (for mounting height 2.5 m, 3 m and 4 m): circular.
Seated persons Ø: 5 m, 6,5 m and 9 m.
Walking persons Ø: 6,5 m, 8 m and 10,5 m.
Visible height 16 mm. With 2 channels.
Targeted for connection and disconnection of lights bands depending on the room brightness.
Regulation in response to the movement possible. Using the device as presence and/or movement
detectors. Detectors application with 2 power off stages. Detectors application with
integrated monitoring function. Constant light switch with up to two independent channels.
Constant light switch with max. 2 outputs for brightnessdependent switching of two light
bands in the area. With integrated KNX bus coupler. Connections: KNX-line: Bus connection
terminal. Brightness limit value: 1 Lux – 1000 Lux. Mounting height: 2 m – 4 m.
Protection class (Device): IP 20. Temperature range (Device): – 5 °C to 45 °C.

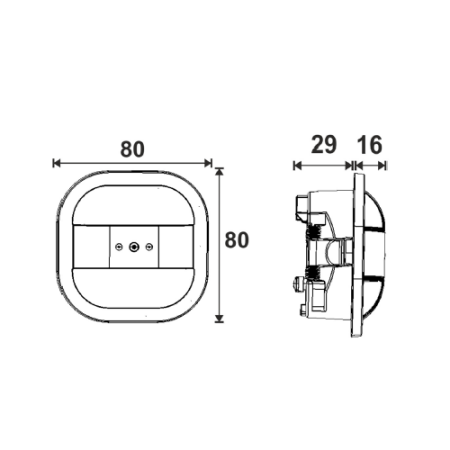

Dimensions: (L x W x D): 80 mm x 80 mm x 45 mm. Mounting depth: 29 mm.
