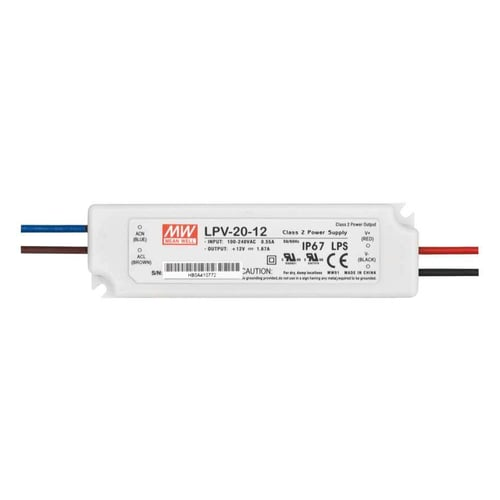

SPECIFICATION
TYPE: Constant voltage
DRIVER CURRENT: N/A
DRIVER VOLTAGE: 12V
DIMMABLE: NON-DIMMING
ELECTRICAL CLASS: CLASS 2
SUPPLY VOLTAGE: 90-264V AC
SUPPLY FREQUENCY: 47/63Hz
POWER FACTOR: N/A
MIN. OUTPUT VOLTAGE: N/A
MAX. OUTPUT VOLTAGE: 12.0V DC
MIN. OUTPUT CURRENT: 0.00A
MAX. OUTPUT CURRENT: 1.67A
INRUSH CURRENT: COLD START 70A (twidth=215μs measured at 50% lpeak)
IP RATING: IP67
WORKING TEMPERATURE: -30ºC - +70ºC
CONNECTION TYPE: Trailing wires
LENGTH: 118mm
WIDTH: 35mm
HEIGHT: 26mm
MIN. CIRCULAR APERTURE: 48mm / 1-7 / 8”
MAX. LED DISTANCE: 600mm 18AWG
