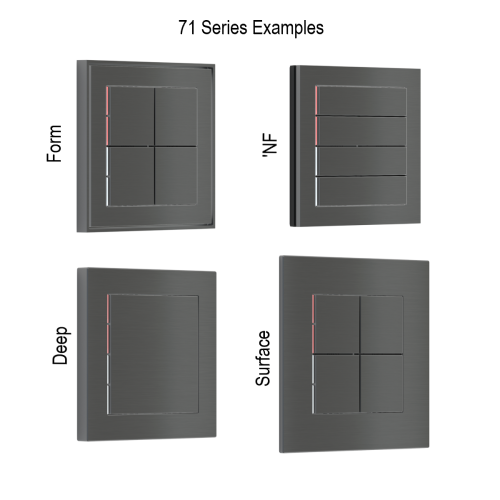

The 4-fold pushbutton of Ekinex® 71 series commands loads on/off switching, controls the dimming of lighting devices, controls motor drives for shutters or executes any other programmable command and control function. Thanks to the integrated temperature sensor, the pushbutton can work as a thermostat for a room or a zone. The LED can be chosen in the colour combinations blue / green or white / red. The device integrates a KNX bus communication module and is intended for mounting onto a wall mounting box; it is powered by a SELV voltage directly from the KNX bus and does not require any auxiliary power supply.
Technical data
- 30 Vdc power supply by KNX bus
- Current consumption from bus < 15 mA
Delivery
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
- set of rockers:
- 1 square rocker EK-T1Q-...
- 2 vertical rectangular rockers EK-T2R-...
- 4 square rockers EK-T4Q-...
- 4 horizontal rectangular rockers EK-T4R-...
- square and double frame Form or Flank version:
-
EK-FOQ-... Square Form frame
-
EK-FLQ-... Square Flank frame
-
EK-FO2-... 2 Fold Form frame
-
EK-FL2-... 2 Fold Flank frame
- square, double and triple plate with 60 x 60 mm window:
-
EK-PQS-... Square For Form / Flank Frame
-
EK-DQS-... Square For Deep version
-
EK-SQS-... Square For Surface version
-
EK-P2S-... Double For Form / Flank Frame
-
EK-D2S-... Double For Deep version
-
EK-S2S-... Double For Surface version
-
EK-D3S-...Triple For Deep version
- a plastic adapter:
-
EK-TAQE-1 For Form / Flank Frame
-
EK-TAQE-1-NF For ‘NF/Deep version
-
EK-TAS-Q-1 For Surface version
- a metal support for installation onto round or square mounting box (fixing holes 60 mm apart) EK-SMQ-71-1
Functions / Features
- 4-fold (possibility to configure up to 8 independent functions)
- 4 freely programmable LED for each channel
- 2 colour combination available for the LED (blue / green or red / white)
- Room thermostat function
- Integrated temperature sensor
- Plastic casing
- Connection to bus line with KNX terminal block
- Frontal programming pushbutton and LED
- Wall-mounting installation on round or square wall box
- IP20 protection degree (installed)
