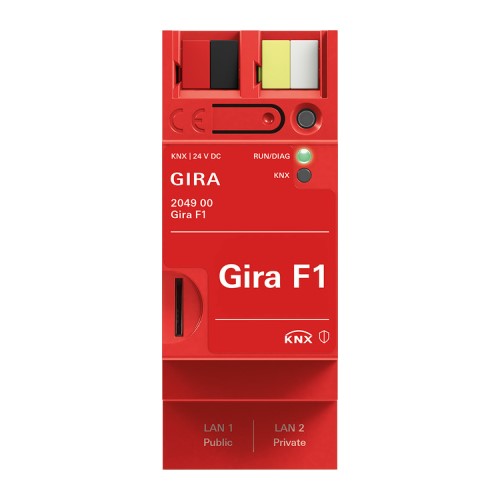

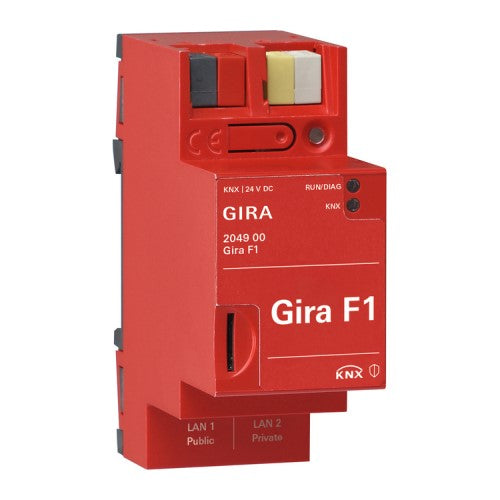

Couples two self-sufficient KNX systems as a KNX bridge.
Bidirectional KNX communication from KNX IP to KNX TP.
1000 group addresses.
Supports KNX Secure.
Can adapt group addresses to the KNX systems (mapping).
Commissioning with the ETS.
Two separate applications, as a TP device and as an IP device.
Applications:
e.g. Forwarding of KNX telegrams from a shared weather station in the building to the private KNX system in the apartment.
Messages such as upcoming elevator maintenance, visit of the window cleaner etc. forwarded to the apartment.
Can also be used in the commercial sector, e.g. shopping malls or if historically grown company buildings with self-sufficient KNX systems should communicate with each other.
Firmware update takes place via the Gira Project Assistant (GPA).
SIP functionality
Secure separation of two networks.
Protection against access to the private network.
Only configured SIP telegrams are forwarded.
Simple configuration via the device website.
Supports SIP and SIPS.
Notes
Supply via external DC 24 V.
Technical specifications
KNX media: TP256
Nominal voltage: DC 24 to 30V
Power Consumption: 2w
IP communication: Ethernet 10/100 BaseT (10/100 Mbits/s)
