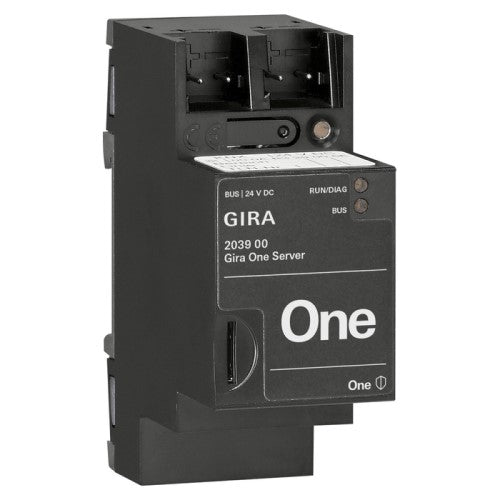

One Server

Features

• Commissioning server for a maximum of 200 Gira One devices.
• Visualization server for mobile devices (iOS, Mac OS and Android).
• Gira Smart Home App also available for PC with Windows operating system.
• Consumers that are visualized in the Gira Smart Home App: switching, dimming, garage door, door opener, blinds, roller shutters, awnings, skylights, roof domes (with and without positioning), underfloor heating (electric), underfloor heating (water-based), radiators (electric), Radiators (water-based), underfloor heating/cooling (water-based), heat/cooling requirement notification, status display of a binary status (on, off), status display of decimal statuses (actual temperature)
• Group control (switching, dimming, blinds, roller shutters, awnings, roof windows, roof dome), scenes, IP camera, Sonos audio control, Philips hue, eNet SMART HOME.
• Automatic project documentation.
• Automatic end customer documentation.
• Integrated diagnostic function:
• Bus monitor for controlling devices and consumers.
• Telegram monitor with ring memory for storing up to 500,000 telegrams.
• Up to 250 consumers can be controlled via the Gira Smart Home app per project.
• Up to 250 timers, each with 10 switching points, which the user can set in the app.
• Up to 62 users can be created in the user administration.
• Presence simulation with the start of the simulation corresponding to the day.
• Connection to Sonos with a maximum of 8 Sonos rooms including assignment and selection of favorites.
• Connection to Philips hue with a maximum of 30 hue consumers or a maximum of 5 hue bridges.
• Connection of a maximum of 20 IP cameras.
• Connection of an eNet SMART HOME server with a maximum of 100 eNet switching, dimming and shading consumers each.
• Simultaneous access from 100 mobile end devices to the Gira One server.
• Intuitive app with a user-customizable user interface:
• Individual favorites area.
• Simple configuration of timers and scenes.
• Simple adaptation of functions and rooms (sorting, designations, symbols, parameters, room and trade assignment).
• More than 400 symbols available to customize the visualization.
• Temperature display in the header (inside and outside temperature).
• NFC tag for calling up individual scenes.
• Automatically set location via GPS for Astro function.
• Enable and unlock remote access for other users.
• Enable remote maintenance for the electrician.
• User administration including administration of access rights for individual users.
• PIN protection for the system settings in the Gira Smart Home app.
• Device password of the Gira One Server can be changed as an administrator via the Gira Smart Home App.
• Up to 50 scenes with 64 scene variants each.
• Access to multiple profiles in the Gira Smart Home App (Gira One, Gira X1).
• Time-saving commissioning:
• Project planning and commissioning is carried out using the new Gira project assistant (from GPA Version 5). The Gira project assistant is available free of charge in the Gira download area.
• Wizard-guided step-by-step project planning enables the Gira One system to be commissioned very easily.
• Offline commissioning with GPA: Prepare at your desk without already owning the devices. Deployment at the customer's site after the devices are installed.
• Fast project changes or updates during operation possible without restarting the device.
• Reading out the current project using GPA.
• Project backup.
• Automatic saving of a project copy on the Gira One server.
• Continuous, functional extensions and updates via free firmware and software updates.
• Two RJ45 sockets with switch functionality support the simple looping through of the patch cable.
• Based on the globally proven smart home standard KNX.

High security:

• Integrated, secure remote access function for the Gira Smart Home App.
• Integrated, secure remote maintenance function with Gira project assistant.
• The device password protects the Gira One Server from unauthorized access.
• The encrypted TLS data transmission between the Gira Smart Home App and Gira One Server and between the GPA and Gira One Server prevents third parties from reading it.
• The encrypted bus communication (KNX Data Secure) between Gira One devices and Gira One Server protects against unwanted access and manipulation of the smart home by third parties.

Technical specifications

• Gira One Medium: twisted pair (TP), YCYM 2x2x0.8
• Test voltage: 4 kV (KNX/EIB bus line)
• Nominal voltage: DC 24 to 30V
• Power Consumption: 4w
• IP communication: Ethernet 10/100 BaseT (10/100 Mbit/s)
• Supported protocols: DHCP, AutoIP, TCP/IP, UDP/IP
• Connections: IP: 2 x RJ45 sockets
• Connections: Gira One Bus: Connection and branch terminal
• Ambient temperature: 0°C to +45°C
• Modular widths (MW): 2
