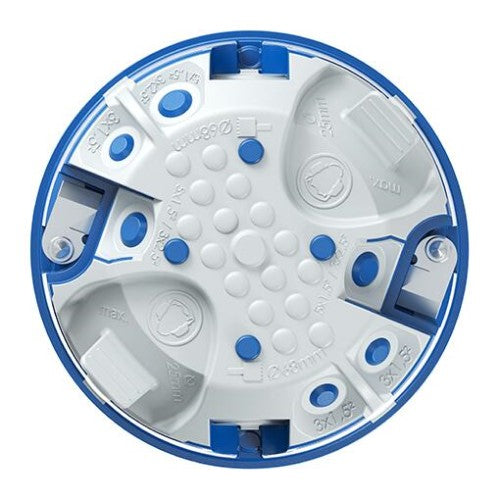

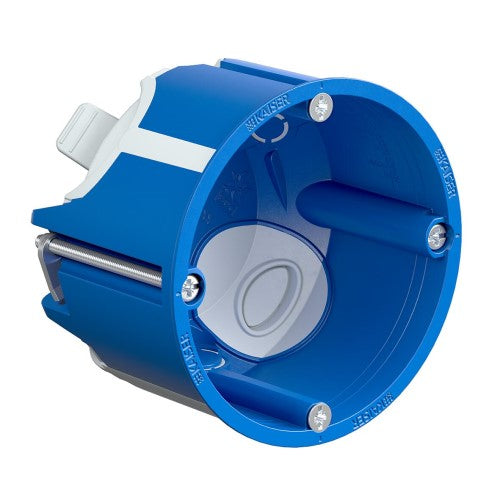

Thanks to their solid box body in combination with the sound-absorbing surface on the base of the box, sound insulation 68 one-gang and one-gang junction boxes guarantee the wall's sound insulation. This function is completely maintained even with directly opposing installation. The easy opening process and the 68 mm installation opening ensure fast mounting and also easy retrofitting in existing electrical installations.
- for sound insulation walls
- also for directly opposing installation
- minimum wall thickness 100 mm
- can be combined with each other and with the one-gang junction box
- Depth: 49 mm
- Cut hole Ø: 68 mm
- For panel thicknesses up to: 40 mm
- Cable entries of up to Ø 11.5 mm: 4
- Tube entries up to M25: 2
- Support connectors for each package: 5
- Pack Quantity: 10 pc
