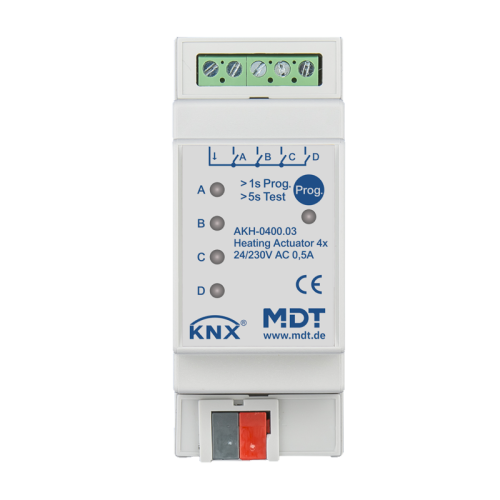

The MDT Heating Actuator receives KNX/EIB telegrams and controls up to independent electrical outputs. Each channel has its own LED indicator.
- Production in Germany, certified according to ISO 9001
- New generation with function extension
- Each channel controls up to 4 electrothermic valve drives (230VAC)
- Free assignment of the outputs to the controller channel
- Controllable with 1Bit (Switching/PWM) / 1Byte actuating variable
or direct control with temperature value via KNX bus
- Integrated PI temperature controller (Heating and Cooling)
- Comfort-, night- and frost protection. Summer-/winter operation
- 1Bit +/-, 1Byte or 2Byte absolute object to set the given value
- Setpoint values are stored at voltage failure
- Emergency operation if cyclic actuating variable fails
- Overload protection with fault message object (230VAC)
- Mains voltage failure detection with fault message object (230VAC)
- Objects for heating request and cyclic movement of the valves
- Comprehensive scene functions
- Compatible with many visualisations
- Minimum flow temperature
- Diagnostics for each channel with 14Byte plain text object
- Quick application download (long frame support with ETS 5 or higher)
- 3 years warranty
