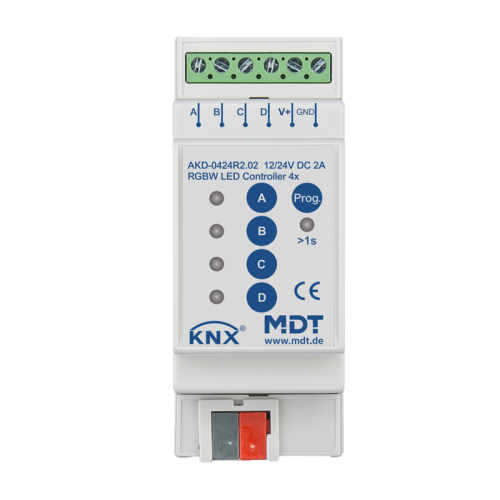

The MDT LED Controller receives KNX/EIB telegrams and controls 12/24V RGBW LED stripes.
Product features
- Comprehensive function extension
- Absolute and relative dimming for HSV color space and RGBW
- Tunable White color temperature control
- Selectable dimming curve and PWM frequency up to 1000 Hz
- Global and individual dimming speeds
- Individual and predefined sequences (e.g. TV Simulator)
- Repetition of sequences for automatic color control
- Suitable for 12/24 V CV LED (Common Anode), 4 A for each color channel
- Selectable load distribution:
AKD-0424R2.02: 4 channels each 2 A or 1 ch. 3.5 A and 3 ch. 1.5 A
AKD-0424R.02: 4 channels each 4 A or 1 ch. 7.0 A and 3 ch. 3.0 A
- Parallel operation of 2 channels
- Operating modes: 4 x White, RGB, RGBW, Tunable White
- Automatic color temperature control Dim2Warm
- Dynamic daylight control HCL (Human Centric Lighting)
- Automatic time-dependent dimming
- Day/night function
- Overcurrent and overtemperature monitoring
- Production in Germany certified according to ISO 9001
- 3 year warranty
