Hallway KNX

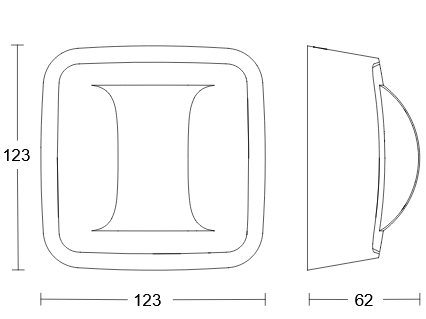

Dimensions (L x W x H): 62 x 123 x 123 mm

Mains power supply: 30 V

Power supply, detail: KNX bus

Sensor Technology: High frequency

Application, place: Indoors

Application, room: Indoors, corridor / aisle

Installation site: ceiling

HF-system: 5,8 GHz

Electronic scalability: Yes

Mechanical scalability: No

Mounting height: 2 – 4 m

Optimum mounting height: 2,8 m

Detection: also through glass, wood and stud walls

Detection angle: 360 °

Angle of aperture: 140 °

Sneak-by guard: Yes

Capability of masking out individual segments: No

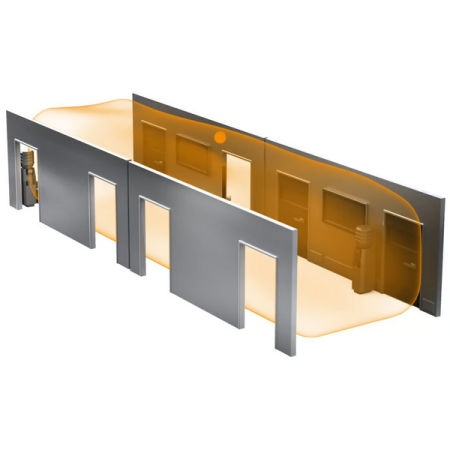

Reach, radial: 25 x 3 m (75 m²)

Reach, tangential: 25 x 3 m (75 m²)

Twilight setting TEACH: Yes

Time setting: 10 s – 1092 Min.

Basic light level function: Yes

Main light adjustable: 0 - 100 %

KNX functions: ["Comfort","Individual pyro evaluation","Basic light level function","HVAC output","Light output 4x","Presence output","Day \/ night function","Dewpoint","Logic gate","Humidity output","Temperature output"]

With bus coupling: Yes

Settings via: Bluetooth

With remote control: No

Type of interconnection: ["Master\/master","Master\/slave"]

IP-rating: IP20

Material: Plastic

Ambient temperature: -25 – 50 °C

Manufacturer's Warranty: 5 years

Interface: KNX

Sensor Technology: High frequency
