With the new motion and presence detectors of the Eco Plus series, the most common sensor-based standard requirements and everyday scenarios in the contract sector can be successfully and easily implemented. The pragmatic entry-level models form a sound basis for intelligent, energy-saving and environmentally friendly light management, taking into account the prevailing daylight. The high-performance infrared sensors convince with reliable 360° detection that can be adapted as required by means of plug-in cover caps in matching colours. The MD-8 motion detector and the PD-8 presence detector detect movements in a diameter of 8 m. The MD-24 motion detector and the PD-24 presence detector detect movements in a diameter of 8 m. While the MD-24 motion detector and the PD-24 presence detector even have a range of 24 metres. The two presence detectors (PD) are additionally equipped with a presence detection function that covers a presence range of 6 and 7.5 m respectively. All sensors of the Eco Plus series are available as flush-mounted, surface-mounted or ceiling-recessed versions.
- Our series for the common ranges
- Presence detector with 24 m motion detection and 7.5 m presence detection for integration into a KNX bus system
- Ideal for large offices, meeting rooms or passageways
- Easy to mount due to magnetic holder and round design
- Starting the programming mode from a distance via Smart Remote remote control via app
- Including pluggable cover caps for detection limitation
- External approval and measurement according to sensNORM
- IP 20 (flush-mounted and ceiling-recessed sensors) and IP 54 (surface-mounted sensors)
| Sensor technology |
|
| Technology, sensors |
passive infrared, Light sensor |
| Mounting height |
2 – 4 m |
| Mounting height max. |
4,00 m |
| Optimum mounting height |
2,8 m |
| Capability of masking out individual segments |
Yes |
| Electronic scalability |
No |
| Mechanical scalability |
No |

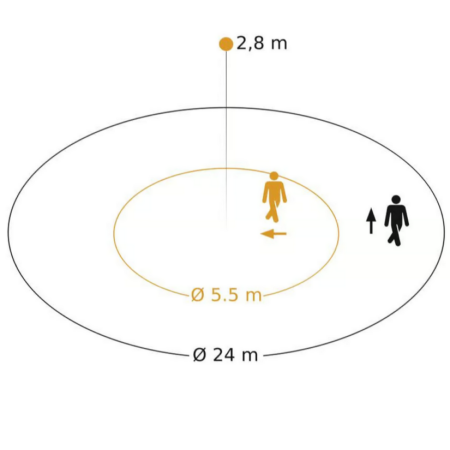

| Reach, radial |
Ø 5.5 m (24 m²) |
| Reach, tangential |
Ø 24 m (452 m²) |
| Reach, presence |
Ø 7.5 m (44 m²) |
| Switching zones |
1436 Schaltzonen |
| Abdeckmaterial Lieferumfang |
shrouds |
| Functions |
|
| Functions |
Motions sensor, Light sensor, Presence function, Presence detector logic |
| Twilight setting |
2 – 800 lx |
| KNX functions |
Light level, Light output 2x, Constant-lighting control, Photo-cell controller, Basic light level function, HVAC output, Logic gate, Presence output, Sabotage protection, Day / night function |
