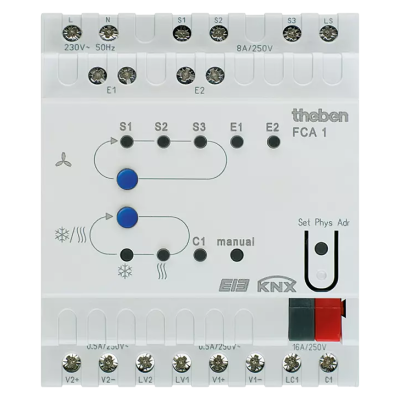

Theben FCA 1 KNX

Function description

Fan coil actuator
For controlling fan coils
For 2 and 4 pipe systems
For up to three fan stages
For 2-way and 3-way valves
Additional relay for electrical heater or cooler bank
Potential-free input for window contacts or temperature sensor
Potential-free, condensation monitoring
Display of operation status via 9 LEDs
Manual operation on device (fan satges, switching between heating and cooling)
Adjustment of setpoint value for cooling in relation to external temperature
Potential-free switching contact for either cooler or heater bank
With emergency program

Technical data

Operating voltage KNX	Bus voltage, ≤10 mA
Operating voltage	220 – 230 V AC 50 – 60 Hz
Frequency	50 – 60 Hz
Stand-by consumption	1.9 W
Width	4 modules
Installation type	DIN rail
Type of contact	Triac
Switching capacity additional relay	16 A
Switching capacity blower relay	8 A
Ambient temperature	-5°C ... 45°C
Type of protection	IP 20
Protection class	II according to EN 60 730-1

Medium: KNX TP

Installation: Din Mounted

Module Size: 4 Module
