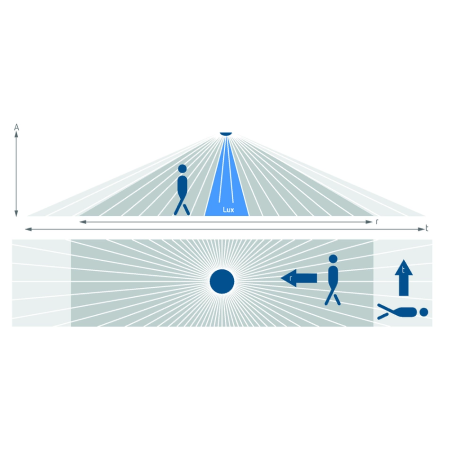

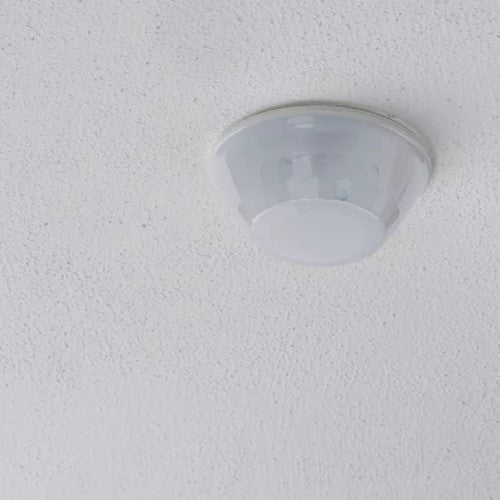

Presence detector (PIR) for flush-mounted ceiling installation indoors, Rectangular detection area 360°, 28 x 5 m (140m2) at 3 m mounting height.
Function description
- For KNX bus system, 2 channels light and 2 channels presence for HVAC control
- 2 channels of light with 1 light measurement
- Automatic lighting control with constant light control or switching operation
- Dimmable lighting in switching mode with and without daylight influence
- Integrated temperature sensor
- Day / night switchover via telegram
- Stand-by functionality (orientation light)
- 3 logic channels (AND/OR/XOR)
- KNX Data-Secure
- Operation as fully or semi-automatic possible
- Manual override possible via external KNX push-buttons
- One directional brightness measurement (mixed light measurement)
- Simple adjustment of the brightness measurement
- Short-term presence
- Selectable control speed
- Teach-in function
- Scene functionality
- Locking functions
- Switch-on delay and run-on time presence adjustable
- Extension of the Detection areas through parallel connection
- Detection sensitivity adjustable for outdoor use
- Test operation to check function and Detection areas
- Setting via ETS software (full range of functions)
- Setting via remote control/APP or APP (BLE)
