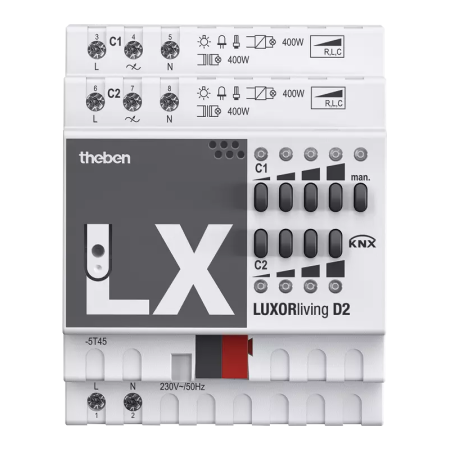

Theben D2 2-way universal dimmer actuator LUXORliving, for dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps. Manual control and LED switching status display for each channel. Dimming output: 400 W per channel.
Function description
- 2-way universal dimmer actuator LUXORliving
- Dimming output: 400 W per channel, dimming area 0-100%
- For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps
- Also suitable for dimming of dimmable energy-saving lamps
- LED switching status display for each channel
- Manual operation on device
Technical data
|
| Operating voltage KNX |
≤10 mA |
| Operating voltage |
230 V AC |
| Stand-by consumption |
~0.9 W |

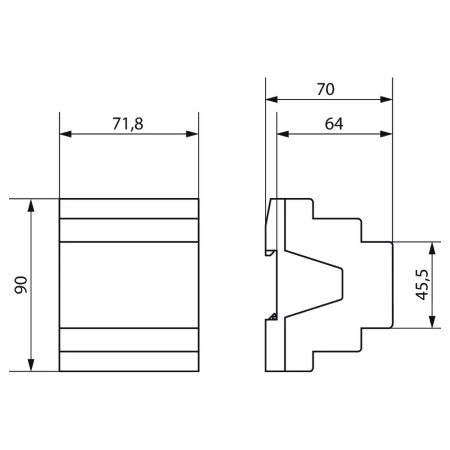

| Width |
4 modules |
| Installation type |
DIN rail |
| Number of channels |
2 |
| Lamp types |
Incandescent, low-voltage and high-voltage halogen and dimmable energy saving lamps and LED |
| Incandescent/halogen lamp load |
400 W |
| LED lamp |
Trailing edge (RC-mode): 400 W |
| Energy saving lamps |
Trailing edge (RC-mode): 400 W |
| Type of protection |
IP 20 |
| Protection class |
II according to EN 60 669 |
