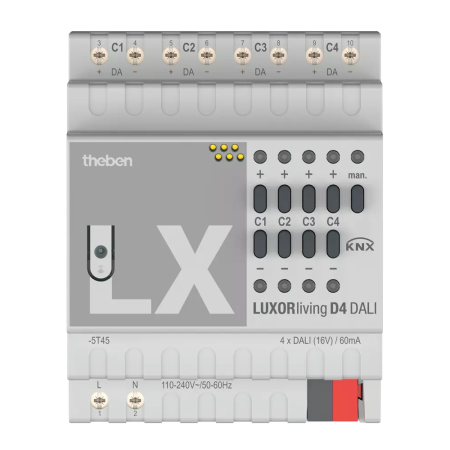

Interface between bus system and DALI lighting system (Digital Addressable Lighting Interface)

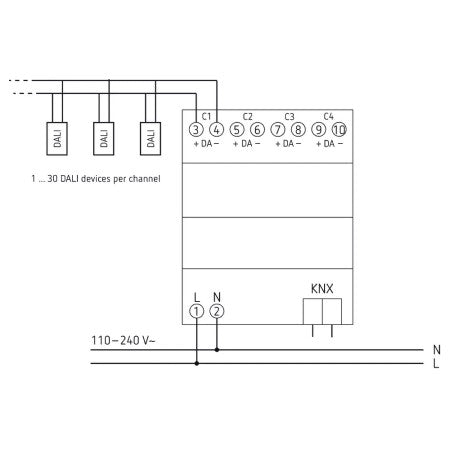

For controlling up to 30 DALI operating devices per channel via broadcast commands
Enables very simple commissioning without the effort of addressing or grouping on the DALI side
Even in the event of a fault, simple replacement of DALI control gear without further programming
Internal DALI power supply with 60 mA output current per channel
In addition to the classic functions such as switching, dimming, scenes, the DALI actuator also offers the possibility of colour and colour temperature control (Device Type 8)
Technical data
Operating voltage KNX
≤10 mA
Operating voltage
110 – 240 V AC 50 – 60 Hz
Frequency
50 – 60 Hz

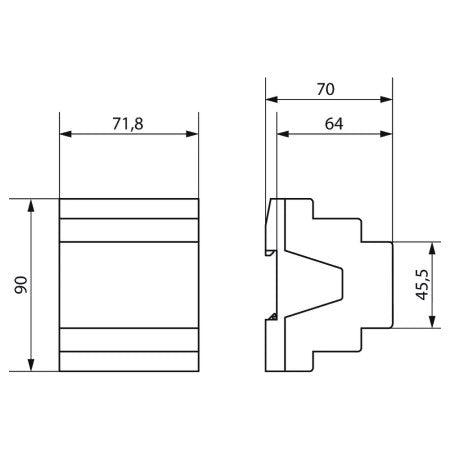

Width
4 modules
Installation type
DIN rail
Number of channels
4
Lamp types
Incandescent, low-voltage and high-voltage halogen and dimmable energy saving lamps and LED
