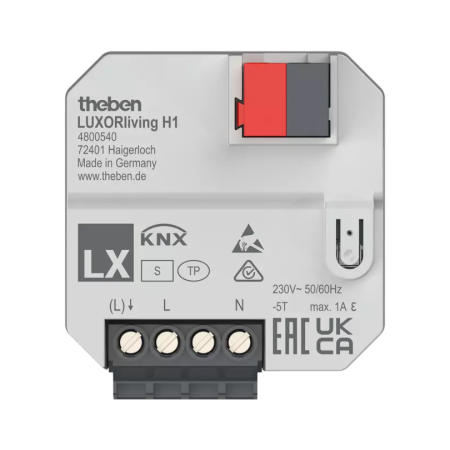

Theben compact H1 LUXORliving, flush-mounted heating actuator for easy installation in switch and junction boxes. These remove the need for time-consuming and costly wiring in the control cabinet.
Function description
- 1-way flush-mounted heating actuator LUXORliving
- Noiseless control of thermal actuators 230 V AC
- Integrated temperature controller heating/cooling
- Valve protection function
- Easy installation due to the compact housing

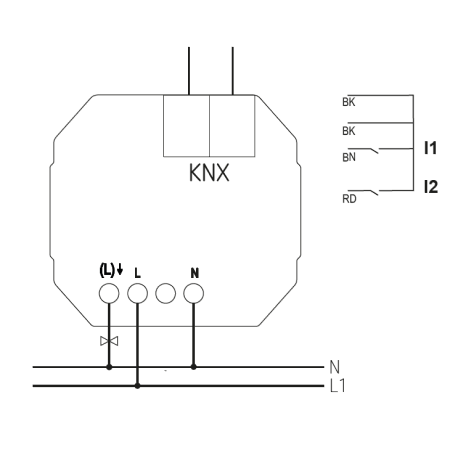

- 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
- Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
Technical data
|
| Operating voltage KNX |
Bus voltage, ≤4 mA |
| Installation type |
Flush-mounted |
| Number of channels |
1 |
| Type of contact |
1 A |
| Ambient temperature |
-5°C ... 45°C |
