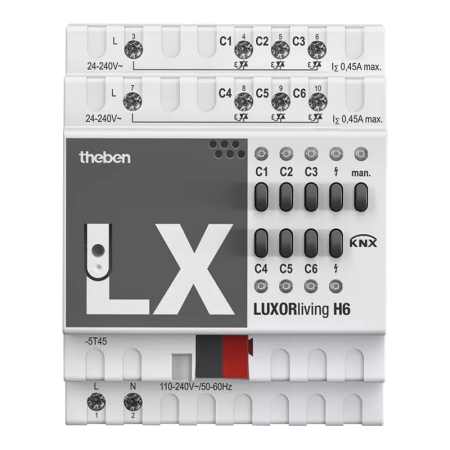

6-way heating actuator LUXORliving for controlling thermal actuators 24 V -250 V AC. Manual control and LED switching status display for each channel.
Function description
- 6-way heating actuator LUXORliving
- 6 potential-free triac outputs (24 V-250 V AC)
- Emergency program for bus or telegram failure
- Summer operation and valve protection
- LED switching status display for each channel
- Manual operation on device
Technical data
|
| Operating voltage |
110 – 240 V AC |
| Stand-by consumption |
~0.3 W |
| Width |
4 modules |
| Installation type |
DIN rail |
| Number of channels |
6 |
| Switching output |
Not potential-free |
| Output |
Triac |
| Voltage output |
24 V AC - – 240 V AC |
| Frequency output |
50 – 60 Hz |
| Type of protection |
IP 20 |
| Protection class |
II according to EN 60 669 |
