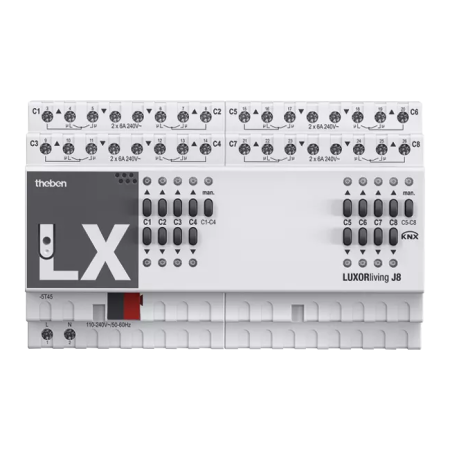

8-way blind actuator LUXORliving for controlling drives for blinds, shutters, sun and vision protection devices. Manual control via LED Up and Down switching status display for each channel.
Function description
- 8-way blind actuator LUXORliving
- For controlling drives for blinds, shutters, sun and vision protection devices
- Manual operation on device
- LED Up and Down switching status display for each channel
Technical data
|
| Operating voltage KNX |
<10 mA |
| Operating voltage |
110 – 240 V AC |
| Stand-by consumption |
<0.5 W |
| Number of channels |
8 |
| Width |
8 modules |
| Installation type |
DIN rail |
| Output |
NO contact, 6 A |
| Switching output |
Potential-free, for SELV, if the whole device switches SELV |
| Type of protection |
IP 20 |
| Protection class |
II according to EN 60 669 |
