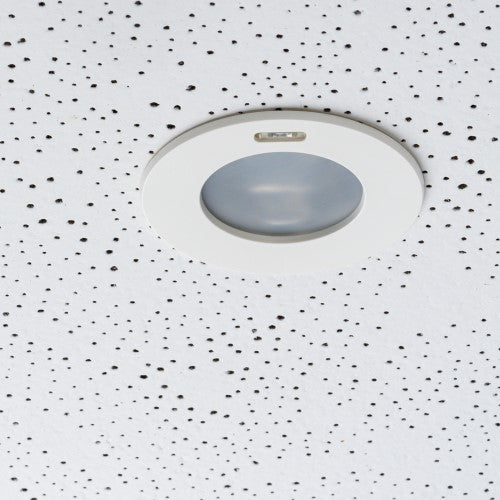

The Theben PlanoSpot 360 KNX 2 presence channels and 2 light channels with a square detection area 360° (up to 64 m2) for reliable and easy planning.
Function description
- Passive infra-red presence detector KNX for ceiling installation in false ceilings

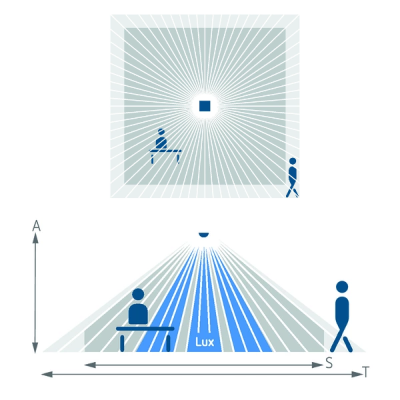

- Square detection area 360°, 7 x 7 m, (49 m2) at mounting height 3 m
- 3 channels light and 2 channels presence
- Automatic presence- and brightness-dependent control for lighting and HVAC
- Two differently sized detection zones for greater flexibility. Adjustable via parameters or remote control.
- Manual alignment of the detection area (swivel mechanism)
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
- 3 directed light measurements
- 2 light channels C1, C2 with 2 light measurements and additional lighting channel C3 without brightness factor
- Switched or constant light control with 2 independent control systems and standby function (orientation light)
- Switching mode with dimmable lighting
- Fully or semi-automatic
- Brightness switching value or set point value can be set in lux by using parameters, the object or via remote control
- Teach-in of the brightness switching value or the set point value
- Light time delay configurable
- Self-learning time delay can be set using parameters, object or via remote control
- Reduction of time delay when present briefly (short-term presence)
- Manual override by telegram or remote control
- 2 presence channels C4, C5, individually configurable
- Switch-on delay and time delay configurable
- Room monitoring with selective movement detection
- Setting the room correction factor for brightness measurement comparison
- Configurable sensitivity
- Extremely simple setting of the energy-saving ratio with the new «eco plus» function
- Test mode for checking function and detection area
- Scenarios
- Parallel switching of multiple presence detectors (Master/Slave or Master/Master)

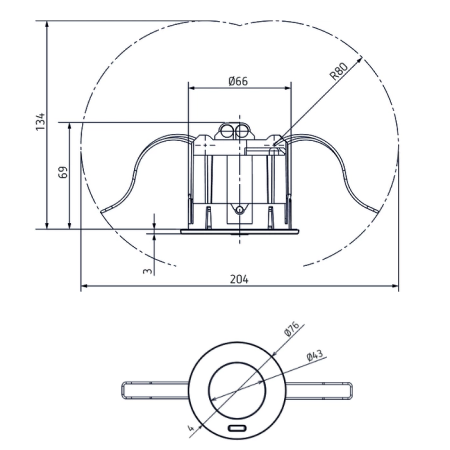

- Installation in false ceilings with springs
- Surface mounting on ceilings possible with the AP-frame (optional)
Technical data
|
| Installation height |
2 – 3.5 m |
| Minimum height |
> 1,7 m |
| Measuring range brightness
|
10 – 3000 lx |
| Detection angle |
360° |
| Type of connection |
KNX bus terminal |
| Installation type |
Ceiling mounting |
| Light switch-off delay |
30 s - 60 min |
| Lamps |
Energy saving lamps, fluorescent lamps, Incandescent/halogen lamps, LEDs |
| Light measurement |
Mixed light measurement |
| Stand-by time light |
30 s – 60 min , on, inactive |
| Stand-by brightness |
1 – 25 % |
| Presence switch-off delay |
10 s - 120 min |
| Switch-on delay presence |
10 s – 30 min / inactive |
| Ambient temperature |
0°C ... 50°C |
| Detection range |
49 m² (7,0 x 7,0 m) |
| Colour |
White |
| Type of protection |
IP 20 |
