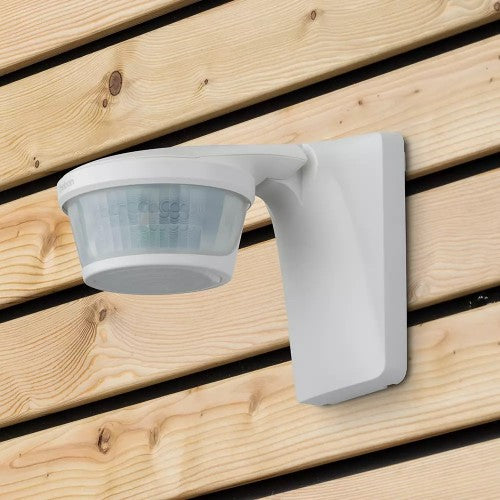

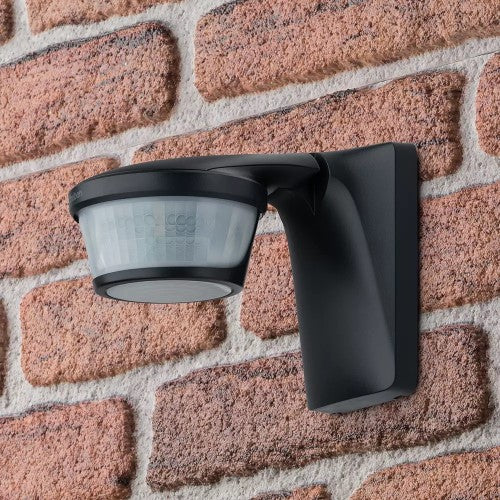

The Theben theLuxa P300 KNX is for larger, commercial outdoors properties such as offices, public buildings, hotels, schools, car parks and warehouses. It also has an integrated temperature sensor.
Function description
- Motion detector (PIR)
- Automatic lighting control based on presence and brightness
- For integration into KNX building systems
- For outdoor use
- For installation on walls and ceilings
- Integrated temperature sensor
- For larger, commercial outdoors properties such as offices, public buildings, hotels, schools, car parks and warehouses
- Easy to program with KNX ETS software
- Adjustable brightness switching value and switch-off delay
- Sensitivity can be reduced
- Area limit via lens attachment
- Mixed light measurement
- Teach-in of current brightness value possible
- Pulse function
- Test function for checking detection area
- Installation on flush-mounted socket possible (60 mm)
- Single-handed plug-in installation
- Instant start-up possible via factory preset
- Controls are place protected
- Corner angle included
- Spacer and corner angle included
Technical data
|
| Measuring range brightness
|
1 – 3000 lx |
| Detection angle |
300° |
| Creep under protection |
Ø 6 m |
| Installation type |
Wall and ceiling installation |
| Light switch-off delay |
1 s - 60 min |
| Lamps |
fluorescent lamps, Incandescent/halogen lamps, Energy saving lamps, LEDs |
| Light measurement |
Mixed light measurement |
| Ambient temperature |
-25°C ... 45°C |
| Colour |
White or Black
|
| Protection class |
III |
| Type of protection |
IP 55 |
