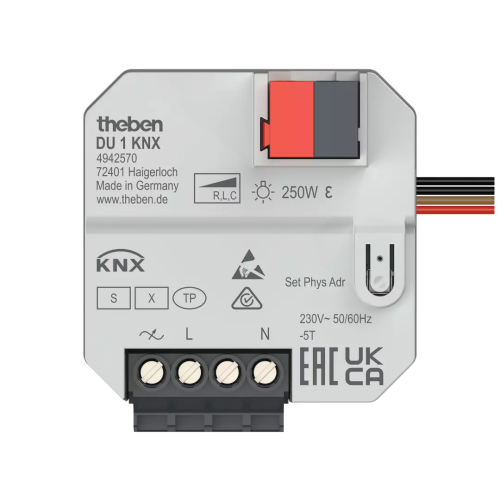

Theben compact DU 1 KNX, flush-mounted KNX actuator for easy installation in switch and junction boxes. These remove the need for time-consuming and costly wiring in the control cabinet.
Function description
- 1-way flush-mounted dimming actuator
- Secure communication with support of „KNX Data Secure“
- Optimised dimming output for dimmable energy-saving lamps, LEDs, incandescent and halogen lamps, and dimmable transformers
- Easy to adapt to different lamps thanks to automatic load detection
- Adjustable dimming curve for precise and flicker-free dimming
- 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
- The binary inputs are assigned to the dimming output as standard (function test before programming)
- Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
Technical data
|
| Operating voltage KNX |
Bus voltage, ≤4 mA |
| Installation type |
Flush-mounted |
| Type of connection |
Terminal screws | Bus connection: KNX bus terminal |
| Number of channels |
1 |
| Incandescent/halogen lamp load |
250 W |
| LED lamp (trailing edge) |
250 W |
| Ambient temperature |
-5°C ... 45°C |
