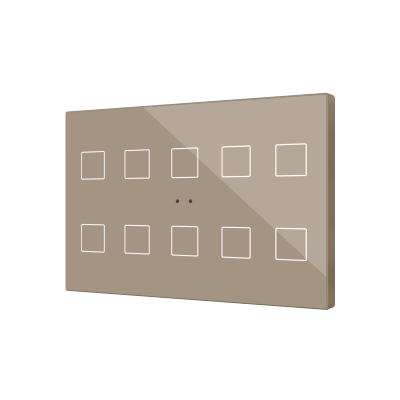

Create unique designs, including images, icons, texts or logos printed on tempered glass. 4, 6, 8 or 10-button versions available all with backlit icons that adapt according to ambient luminosity and proximity sensor. Flat XL 4/6/8/10 incorporates an internal temperature probe and thermostat, as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. Installation in European, Italian, Australian, American or British standard back box. Accessories: temperature probe and motion sensor. Available models: Standard White/Gloss White/Black/Silver or Customised.
Design File Required When Ordering Custom.
FEATURES
- Printed glass touch panel (image customizable through web application)
- 4, 6, 8 or 10 touch areas
- Thermostat
- 2 analog/digital inputs
- Built-in temperature sensor
- Backlighting of touch areas to indicate status
- Luminosity and proximity sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 120 x 82 x 37 mm (it protrudes 9 mm from the wall)
- Flush mount on back box
- Conformity with the CE, UKCA, RCM directives (marks on the back side)
